Halo Plus (12W-18W)

Halo Plus (12W-18W)

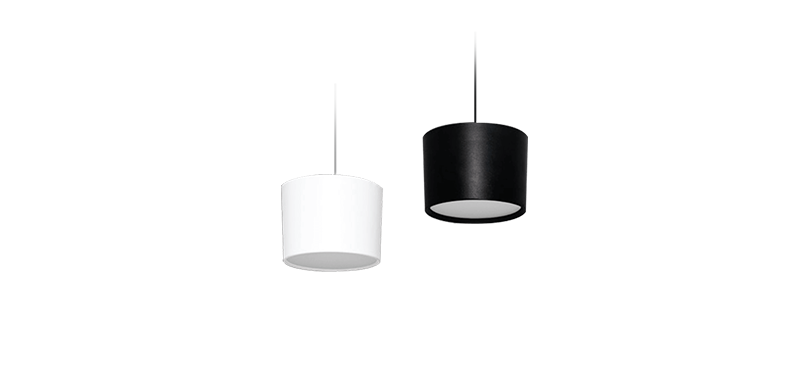

The Wipro Halo Plus (12W–18W) is a sleek, high-efficiency lighting solution ideally suited for contemporary commercial and collaborative spaces such as open-plan offices, conference areas, boutique retail environments, and creative work zones. Built with an extruded aluminium housing featuring a micro-texture powder-coated finish, this designer downlight is available in both matte white and matte black to complement diverse interior styles. Its compact and tapered profile enhances architectural aesthetics while the deep-inset HET PMMA diffuser ensures soft, uniform illumination with low glare, creating a visually comfortable and vibrant environment that supports productivity and collaboration.
Wipro Lighting

Powered by top-class LEDs delivering up to 100 lumens per watt with low total harmonic distortion (THD <10%), the Halo Plus range offers consistent, energy-efficient performance across the 12W, 15W, and 18W variants. Designed for both surface and suspended mounting, these luminaires provide flexible installation options that adapt to varied ceiling designs and spatial arrangements. With excellent light quality, refined aesthetics, and reliable operation, the Halo Plus downlights are a smart choice for modern offices and workspace interiors where performance and design go hand-in-hand.

Download Brochure

icon
Aesthetics

Deep inset diffuser to maintain low UGR

icon
Performance

Best in class LED with efficacy upto 100 Lm/W and THD<10%

icon
Choice

Option available in color: Matte Black & White

benefit image

Specifications

  • HET PMMA diffusers provide high transmittivity
  • In compliance to IS 10322 part 5/ Sec1 1987
  • Tapered design blends well with the architecture
  • CRCA powder coated housing, available in both black

Electrical data

Cat. No.*Power (W) ±10%Rated Voltage (VAC)Input current (Amp)Case Lot (In No’s)
LD99-151-XXX57SMWH122400.05212
LD99-151-XXX40SMWH122400.05212
LD99-211-XXX57SMWH152400.06512
LD99-211-XXX40SMWH152400.06512
LD99-281-XXX57SMWH182400.08012
LD99-281-XXX40SMWH182400.08012
LD99-151-XXX57SMBL122400.05212
LD99-151-XXX40SMBL122400.05212
LD99-211-XXX57SMBL152400.06512
LD99-211-XXX40SMBL152400.06512
LD99-281-XXX57SMBL182400.08012
LD99-281-XXX40SMBL182400.08012

LD99-151-XXX57PMWH122400.05212
LD99-151-XXX40PMWH122400.05212
LD99-211-XXX57PMWH152400.06512
LD99-211-XXX40PMWH152400.06512
LD99-281-XXX57PMWH182400.08012
LD99-281-XXX40PMWH182400.08012
LD99-151-XXX57PMBL122400.05212
LD99-151-XXX40PMBL122400.05212
LD99-211-XXX57PMBL152400.06512
LD99-211-XXX40PMBL152400.06512
LD99-281-XXX57PMBL182400.08012
LD99-281-XXX40PMBL182400.08012

40 - Stands for 4000KWH - Stands for White housing
57 - Stands for 5700KBL - Stands for Black housing
PM - Stands for Pendent mountedSM - Surface mounted
Also available in DALI/ Analog and white color tunable
